Large Frequency Range
The R5550 supports frequency ranges from 9 KHz up to 27 GHz which enables testing of modern systems including tests such as third-order intercept.
Wide Instantaneous Bandwith
Modern waveforms such as 802.11ac standard utilize waveforms that occupy up to 80 MHz in bandwidth and LTE-Advanced aims to utilize bandwidths of up to 100 MHz.
Deep Dynamic Range
RF measurements for characterizing IP3 generally require a dynamic range of around 100 dB. The R5550 supports multiple ADCs there by providing wide IBW with 70 dB dynamic range and a narrow IBW with dB dynamic range.
OVERVIEW

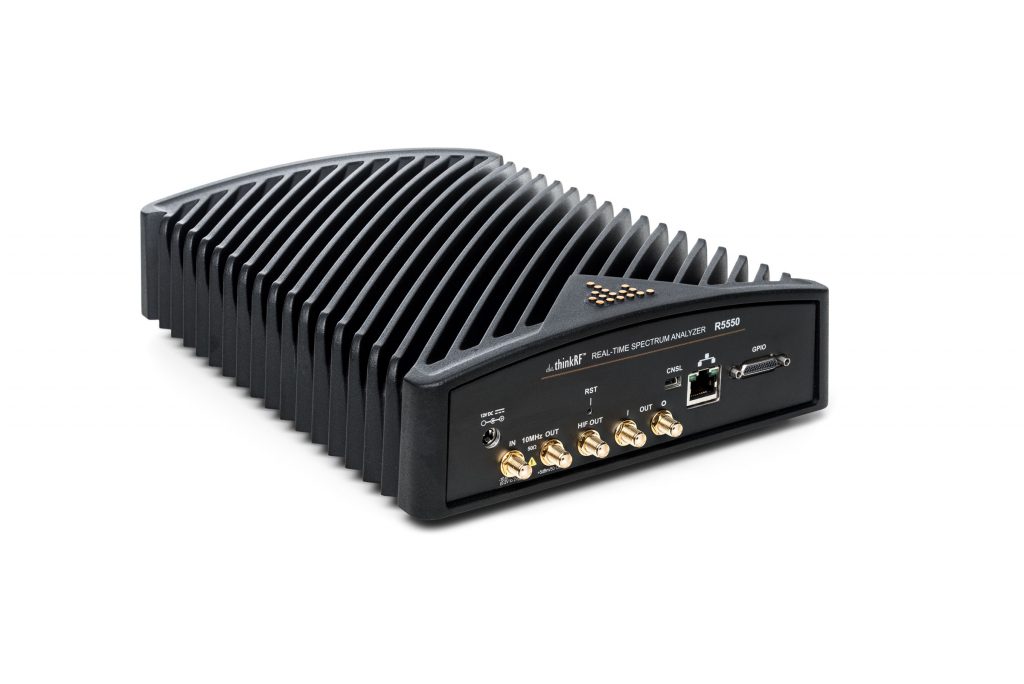

Compact, fanless, networked and remote deployable real-time spectrum analyzers
9 Khz to 8, 18 or 27 GHz
1 / 10 / 40 / 100 / 160 MHz Real-time bandwidth (RTBW)
Up to 28 GHz/s @ 10 kHz RBW Sweep Rate
20 W @ 12V input power consumption
3 x 193.7 x 60 mm (10.13° x 7.63° x 2.36°) Compact
54 kg (5.6 lbs) Light
